Automatic Lighting/Sunlight Sensor Connector End View (Automatic Lighting, Climate Control) (View 217)
GRN
Middle of Dash
On Audio Wire Harness

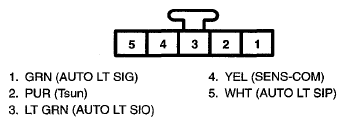

Fig 1: Automatic Lighting/Sunlight Sensor (Automatic Lighting, Climate Control) Connector Terminals (View 217)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
