Back-Up Sensor Control Unit Connector End View (Honda Accessory) (View 434)

• N/A
• Behind Left Rear Side Trim Panel
• On Back-up Sensor Harness (Honda Accessory)

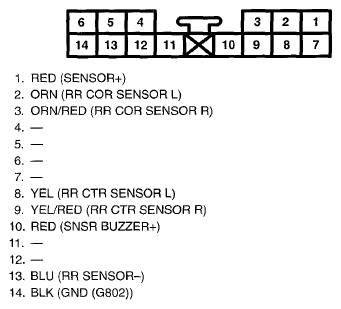

Fig 1: Back-Up Sensor Control Unit (Honda Accessory) Connector Terminals (View 434)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
