C409 Connector End View (Junction Connector) (DPMS Without Roof Speaker) (View 310)

• WHT
• Under Left Side of Dash
• On Dashboard Wire Harness (View of Left Side)

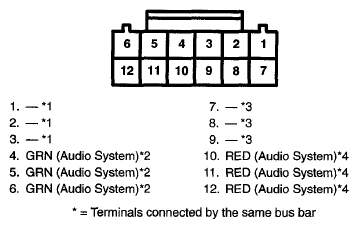

Fig 1: C409 Junction (DPMS Without Roof Speaker) Connector Terminals (View 310)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = Terminals connected by the same bus bar
