Climate Control Unit Connector End View (Climate Control) (View 386)

TAN
Behind Climate Control Unit
On Dashboard Wire Harness (View of Middle to Passenger's Side)
Connector A

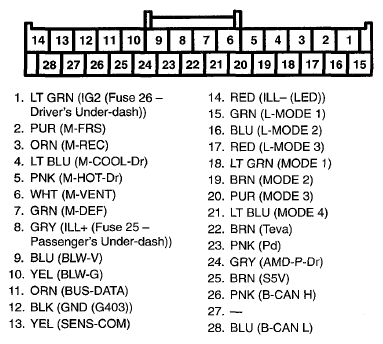

Fig 1: Climate Control Unit Connector Terminals - Connector A (View 386)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

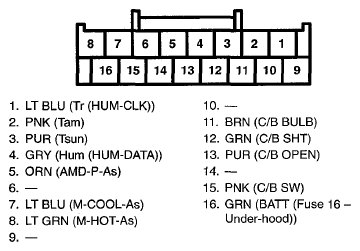

Fig 2: Climate Control Unit Connector Terminals - Connector B (View 386)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
