Driver's Lumbar Support Switch Connector End View (Driver's Lumbar Support System) (View 220)
NAT
Left Side of Driver's Seat
On Driver's Seat Wire Harness

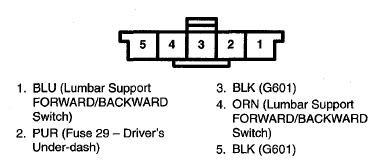

Fig 1: Drivers Lumbar Support Switch (Drivers Lumbar Support System) Connector Terminals (View 220)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
