Front HFL-Navigation-ANC Microphone Connector End View (HFL System With Navigation) (View 281)
GRY
Front Center of Roof
On Roof Wire Harness

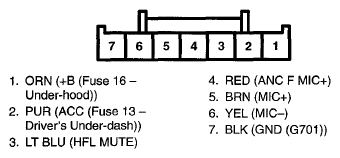

Fig 1: Front HFL-Navigation-ANC Microphone (HFL System With Navigation) Connector Terminals (View 281)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
