Front Recirculation Control Motor Connector End View (View 284)

• WHT
• Under Right Side of Dash
• On Front A/C Wire Harness

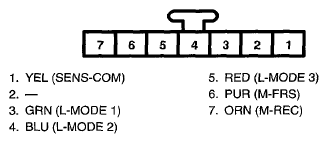

Fig 1: Front Recirculation Control Motor Connector Terminals (View 284)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
