Headlight Leveling Control Unit Connector End View (HID) (View 332)

• GRY
• Under Left Side of Dash
• On Dashboard Wire Harness (View of Left Side)

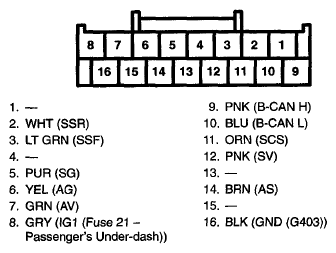

Fig 1: Headlight Leveling Control Unit (HID) Connector Terminals (View 332)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
