Cruise Control Combination Switch Connector End View (View 298)

• WHT
• In Steering Wheel
• On Cable Reel Sub-harness

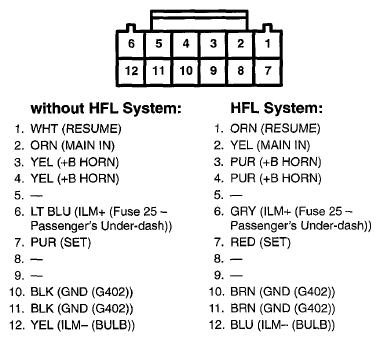

Fig 1: Cruise Control Combination Switch Connector Terminals (View 298)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
