Audio-HVAC Subdisplay Unit Removal/Installation

Audio-HVAC Subdisplay Unit Removal/Installation

With Navigation

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard.
- Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

1. Remove the dashboard center vent Dashboard Center Vent Removal/Installation (With Navigation).

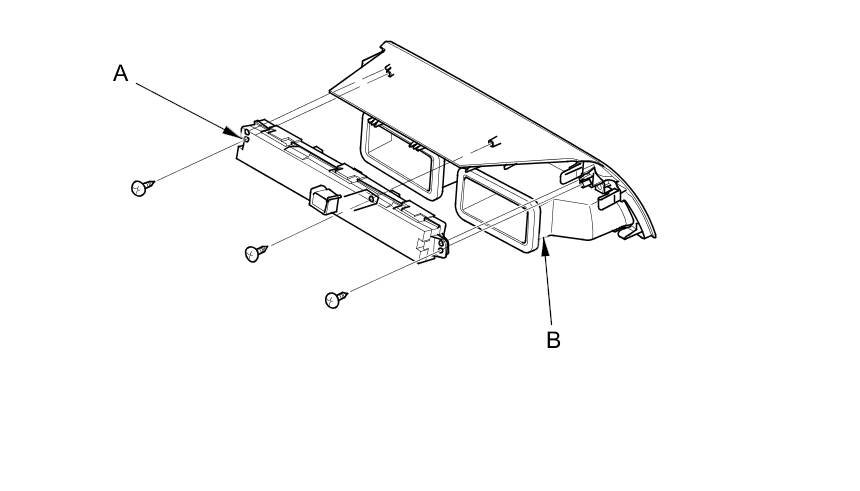

2. Remove the self-tapping screws and the audio-HVAC subdisplay unit (A) from the dashboard center vent (B).





3. Install the audio-HVAC subdisplay unit in the reverse order of removal.
