CMP Pulse Plate A Replacement (PZEV Models)

CMP Pulse Plate A Replacement

1. Remove the cylinder head cover Cylinder Head Cover Removal (PZEV Models).

2. Remove CMP sensor A CMP Sensor A Replacement.

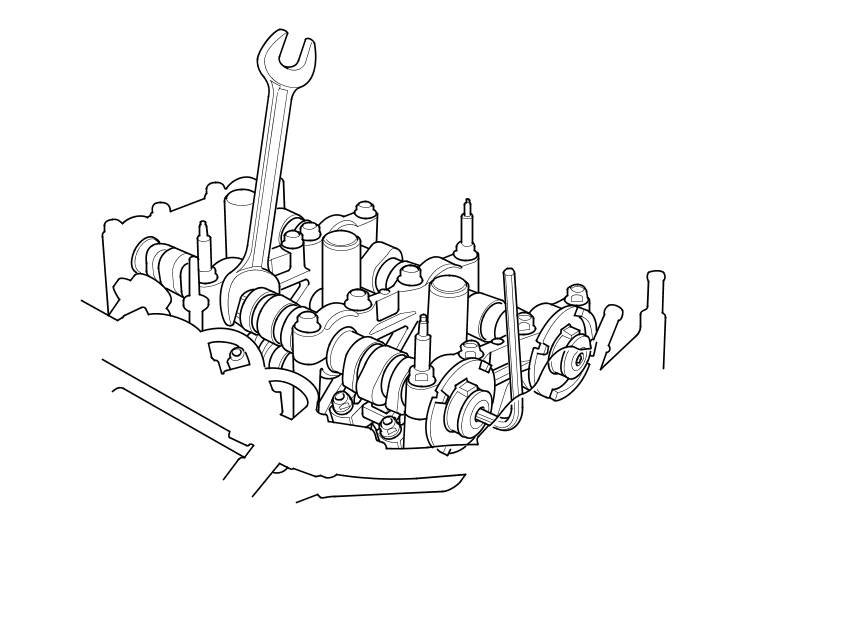

3. Hold the camshaft with an open-end wrench, then loosen the bolt.

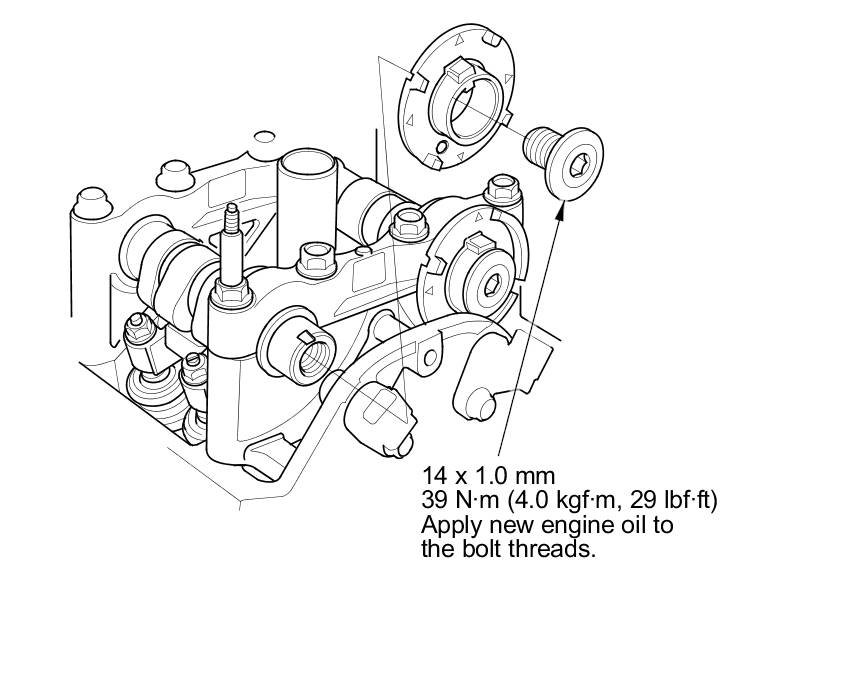

4. Remove CMP pulse plate A.





5. Install CMP pulse plate A in the reverse order of removal.
