Clutch Interlock Switch Test

Clutch Interlock Switch Test

M/T

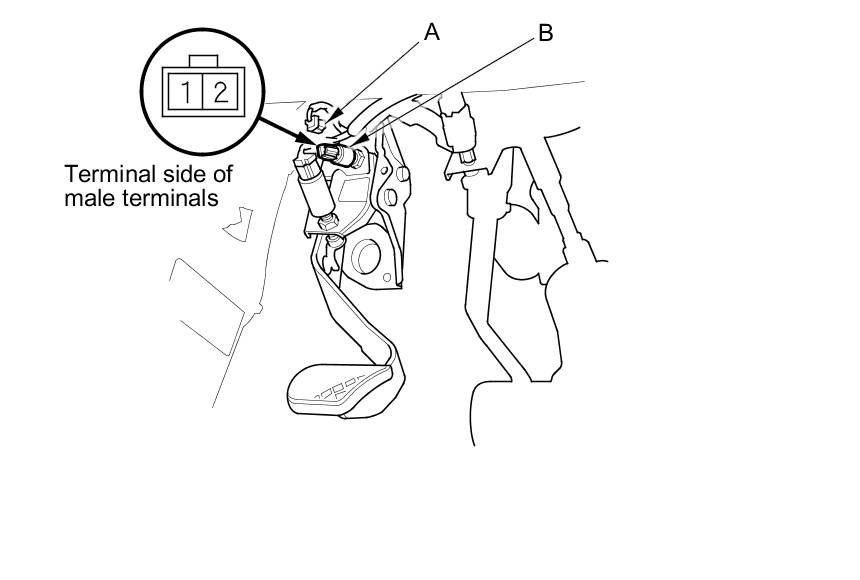

1. Disconnect the clutch interlock switch 2P connector (A).

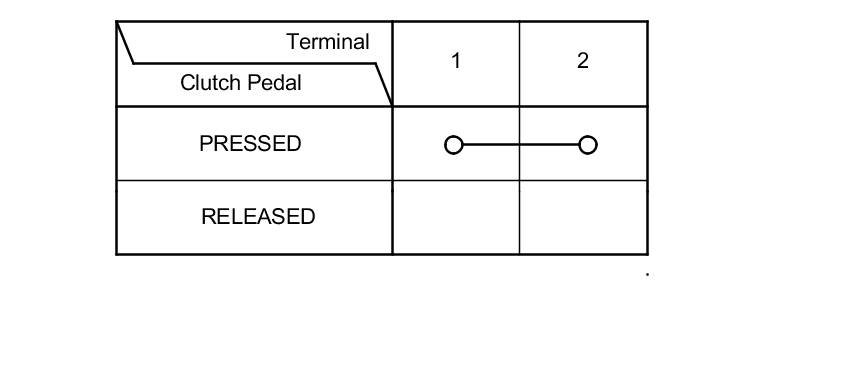

2. Check for continuity between the terminals according to the table:

- If the continuity is not as specified, replace the clutch interlock switch (B) Clutch Interlock Switch Replacement, and adjust the pedal height Adjustments.
- If OK, connect the clutch interlock switch 2P connector.
