DTC P1732: Problem in Shift Control System: Notes

Fig 1: Shift Control System Diagram
G04823297

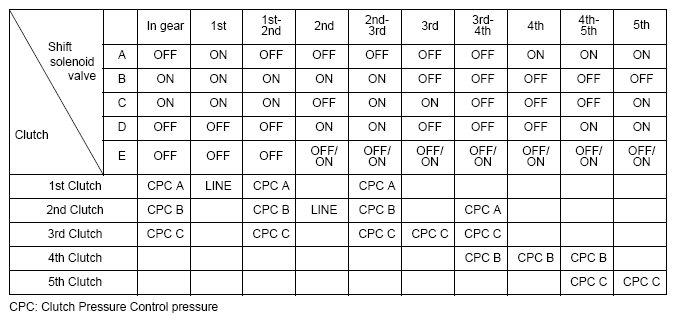

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

Fig 2: Hydraulic Pressure Supply To Clutch By Shift Solenoid Valve Output Position Chart
G05616190
