Navigation Display Unit (Navigation) (View 294)
GRY
Middle of Dash
On Audio Wire Harness

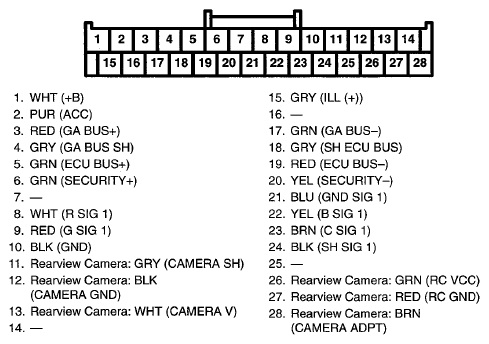

Fig 1: Navigation Display Unit (Navigation) Connector Terminal (View 294)
