Brake Pedal Position Switch Signal Circuit Troubleshooting
- Turn the ignition switch to ON (II).
- Check the BRAKE SWITCH in the DATA LIST with the HDS.
Does it indicate OFF?
YES -Go to step 3.
NO -Inspect the brake pedal position switch (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT ).
- Press the brake pedal, and check the BRAKE SWITCH in the DATA LIST with the HDS.
Does it change to ON?
YES -The brake pedal position switch signal circuit (BKSW line) is OK.
NO -Go to step 4.
- Turn the ignition switch to LOCK (0).
- Jump the SCS line with the HDS.
- Disconnect the brake pedal position switch 4P connector.
- Disconnect ECM/PCM connector A (49P).
- Check for continuity between ECM/PCM connector terminal A42 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair short in the wire between the ECM/PCM (A42) and the brake pedal position switch. Replace the No. 10 HORN/STOP (20 A) fuse.
NO -Go to step 9.

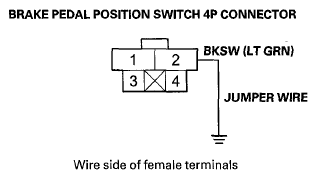

- Connect brake pedal position switch 4P connector terminal No. 2 to body ground with a jumper wire.
- Check for continuity between ECM/PCM connector terminal A42 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair open in the wire between the brake pedal position switch and the No. 10 HORN/STOP (20 A) fuse. Inspect the brake pedal position switch (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT ).
NO -Repair open in the wire between the ECM/PCM (A42) and the brake pedal position switch.
