Home
>>
Honda
>>
2012
>>
Accord SE
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
VTEC (4-CYL)
>>
Component Location Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location Index

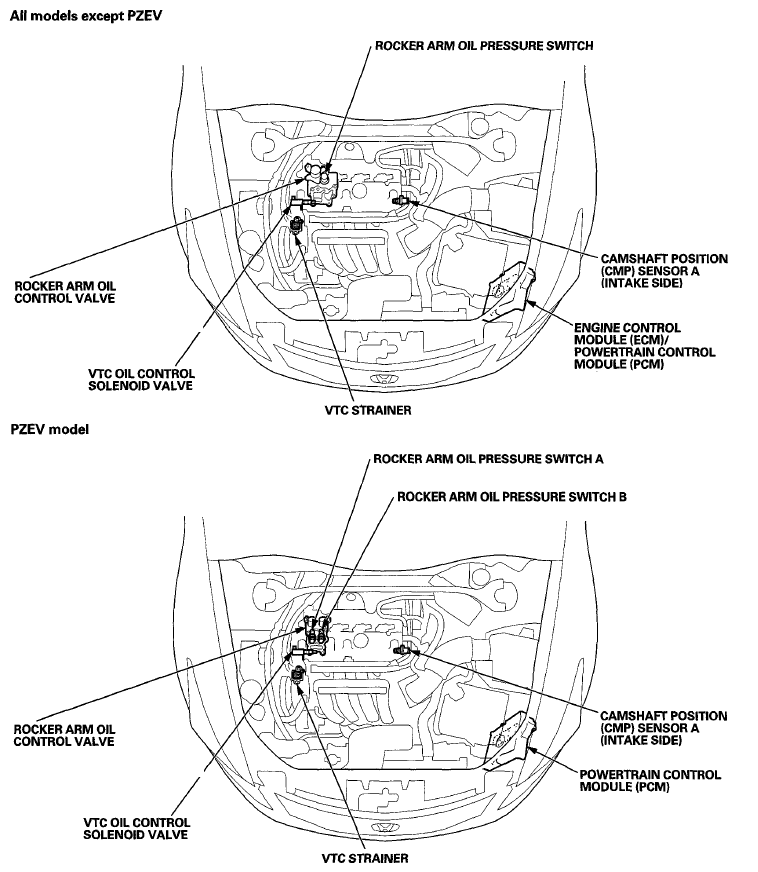

Fig 1: Identifying VTEC-VTC Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
