CMP Sensor A Removal And Installation






CMP Sensor A Removal and Installation

Removal

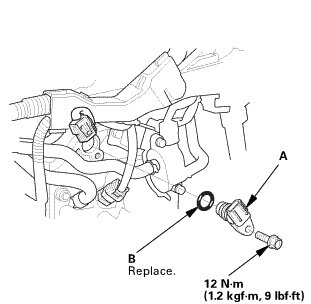

1. CMP Sensor A





1. Remove CMP sensor A.

Installation

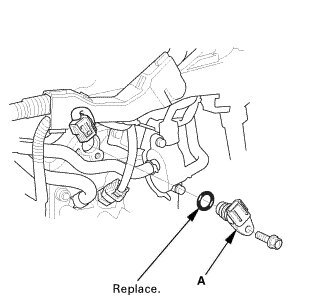

1. CMP Sensor A





1. Install CMP sensor A with a new O-ring (B).
