CMP Sensor B Removal And Installation

CMP Sensor B Removal and Installation

Removal

1. Air Cleaner Cover

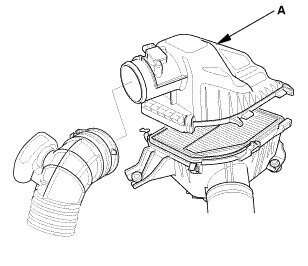

1. Remove the air cleaner cover (A).

2. EVAP Canister Purge Valve and Bracket

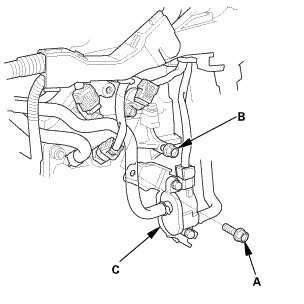

1. Remove the bolt (A) and loosen the bolt (B), then move the EVAP canister purge valve (C) with its bracket.

3. CMP Sensor B

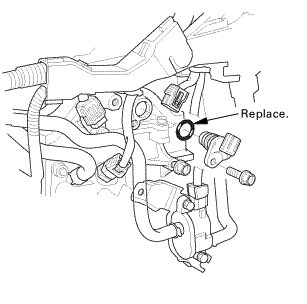

1. Remove CMP sensor B.

Installation

1. CMP Sensor B

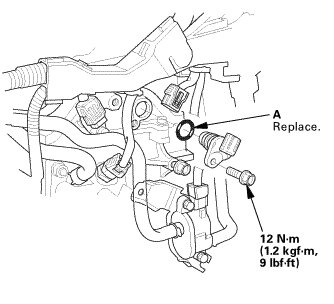

1. Install CMP sensor B with a new O-ring (A).

2. EVAP Canister Purge Valve and Bracket

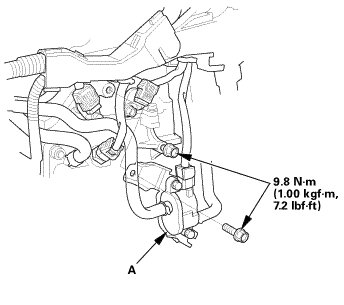

1. Install the EVAP canister purge valve and bracket (A).

3. Air Cleaner Cover





1. Install the air cleaner cover (A).
