Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Removal and Installation

Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Left Middle Floor Undercover

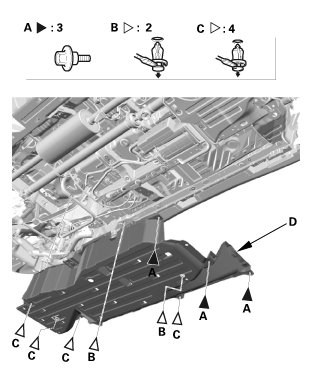

1. Remove the bolts (A) and clips (B, C), then remove the left middle floor undercover (D).

3. FTP Sensor

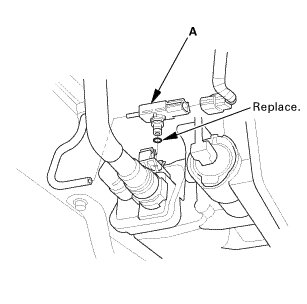

1. Remove the FTP sensor (A).

Installation

1. FTP Sensor

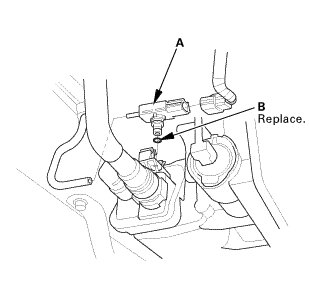

1. Install the FTP sensor (A) with a new O-ring (B).

2. Left Middle Floor Undercover

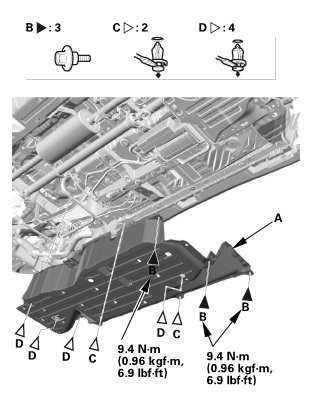

1. Install the left middle floor undercover (A), then install the bolts (B) and the clips (C, D). Make sure the clips snap into place securely.
