Manifold Pressure/Vacuum Sensor: Service and Repair






MAP Sensor Removal and Installation

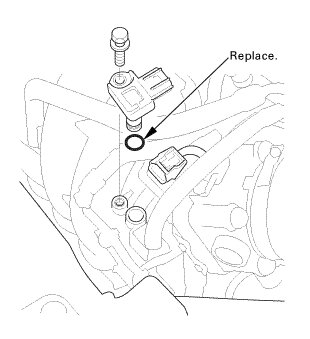

Removal

1. MAP Sensor





1. Remove the MAP sensor.

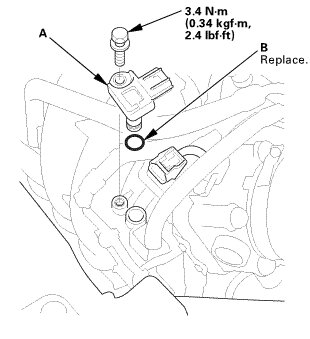

Installation

1. MAP Sensor





1. Install the MAP sensor (A) with a new O-ring (B).
