Procedures

Battery Terminal Disconnection and Reconnection

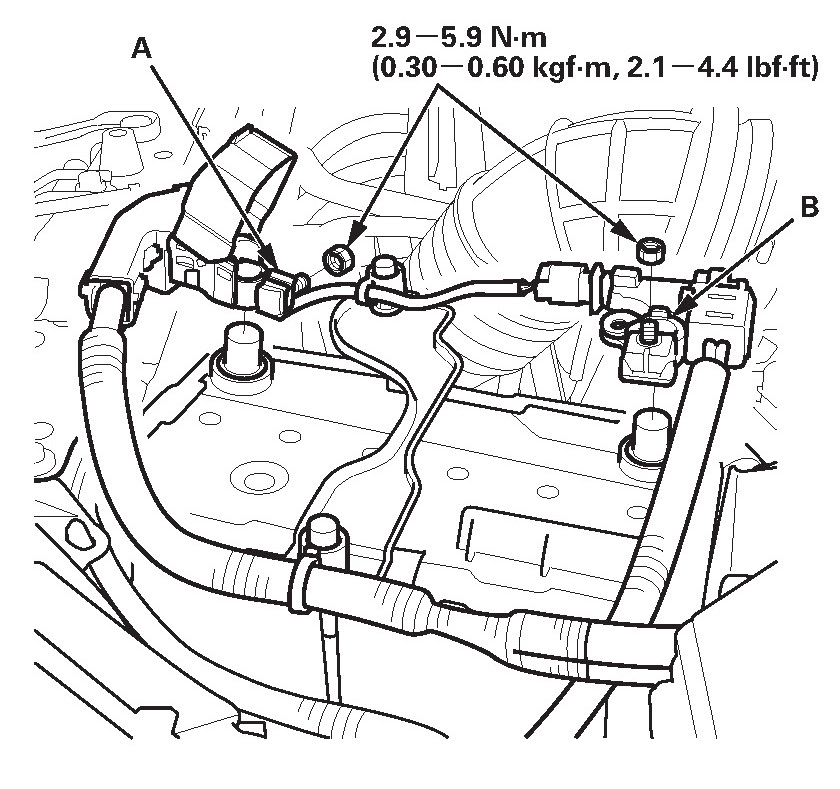

Disconnection

1. Make sure the ignition switch is in LOCK (0).
2. Disconnect and isolate the negative cable (A) from the battery.

NOTE: Always disconnect the negative side first.







3. Disconnect the positive cable (B) from the battery.

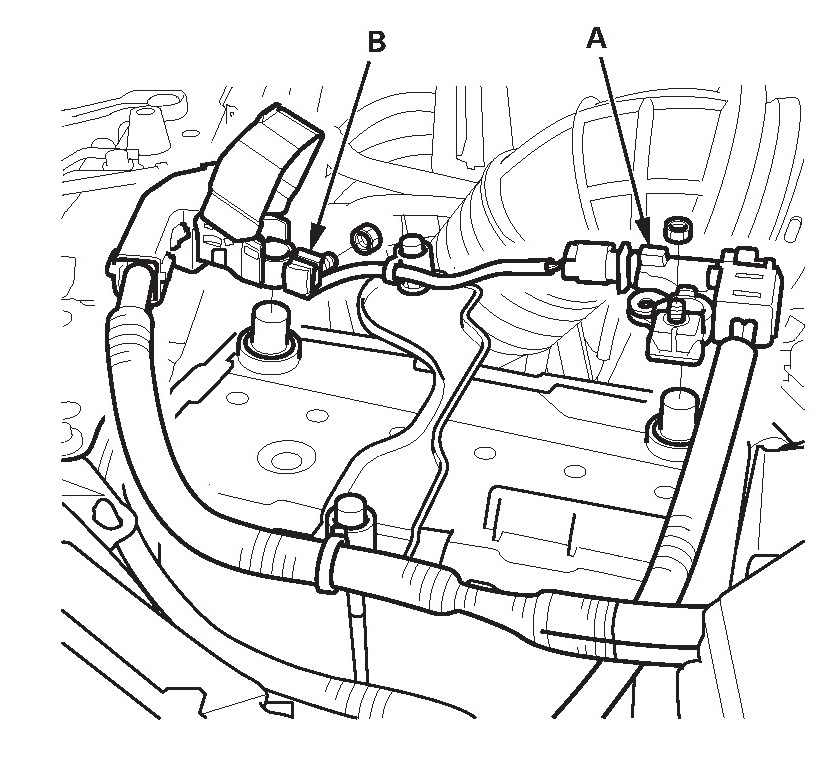

Reconnection

NOTE: If the battery performance is abnormal, test the battery; refer to the appropriate.

1. Clean the battery terminals.
2. Connect the positive cable (A) to the battery.

NOTE: Always connect the positive side first.







3. Connect the negative cable (B) to the battery.
4. Apply multipurpose grease to the terminals to prevent corrosion.
