Power Window Master Switch Removal And Installation

Power Window Master Switch Removal and Installation

Removal

1. Front Door Power Window Switch Panel

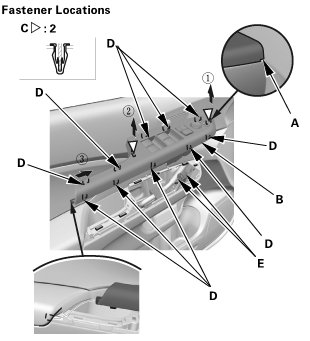

1. Carefully pry out on the notch (A) in the power window switch panel (B) with the appropriate trim tool to detach the clips (C) and the hooks (D). Disconnect the connectors (E), then remove the power window switch panel.

2. Front Door Power Window Switch - Driver's Side

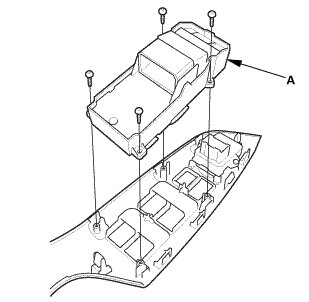

1. Remove the power window master switch (A).

Installation

1. Front Door Power Window Switch - Driver's Side





1. Install the power window master switch (A).

2. Front Door Power Window Switch Panel

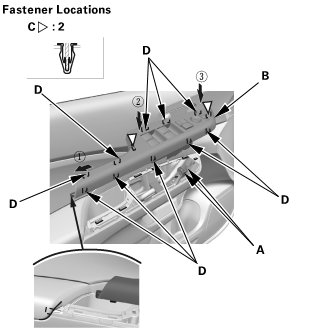

1. Connect the connectors (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.

3. Power Window Control Unit - Reset

1. Do the power window control unit resetting procedure. Testing and Inspection
