Control Unit: Locations




Trans/Driveline

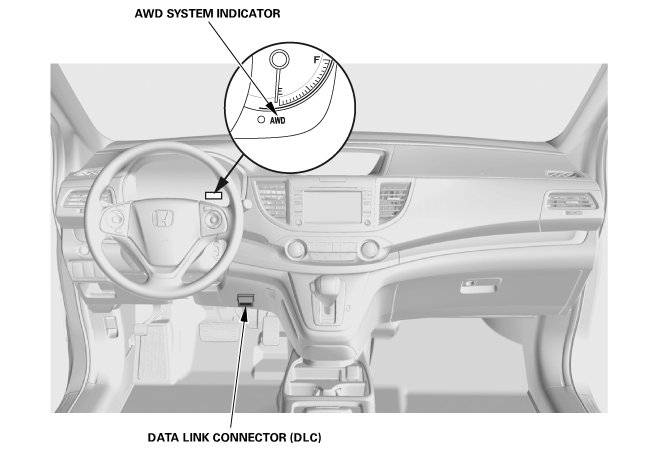

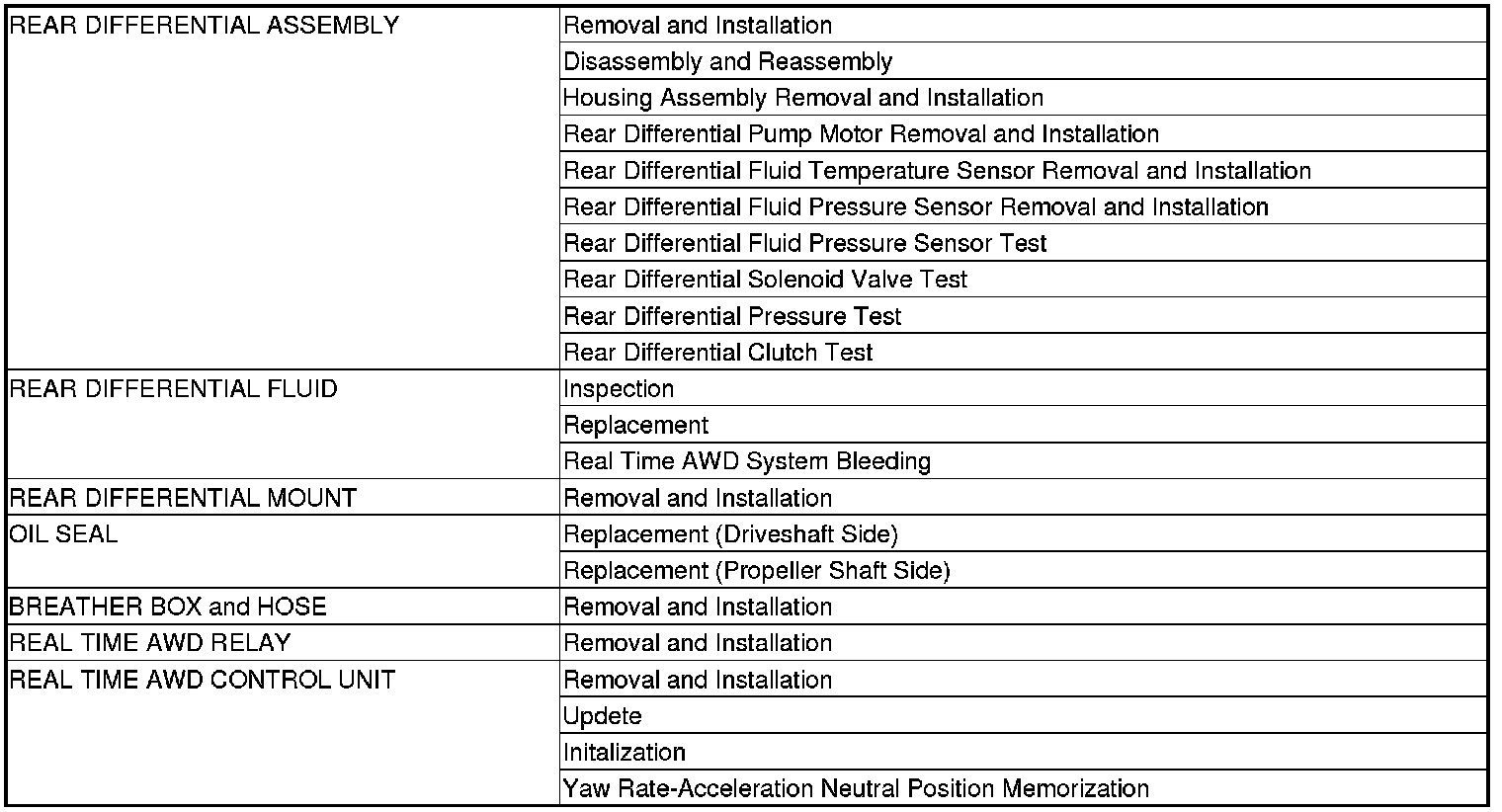

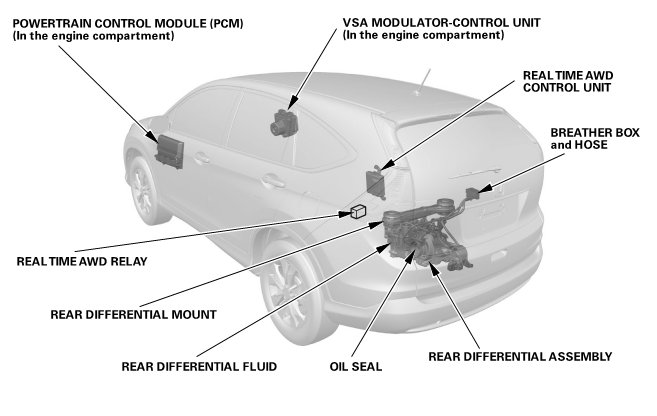

Rear Differential Component Location Index (KA, KC Models AWD)
