Fuse Lid Panel Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

• Take care not to scratch the dashboard or the related parts.
• Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Pull out the bottom edge of the fuse lid panel (A), then remove it from the bottom to the top to detach the hooks (B).

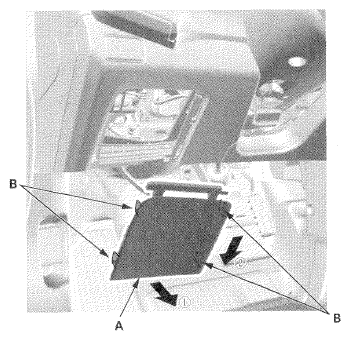

   Fig 1: Pulling Out Bottom Edge Of Fuse Lid Panel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the lid panel in the reverse order of removal, and push the hooks into place securely.
