Cruise Control Combination Switch Test/Replacement

There are SRS components located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), in the SRS before doing repairs or service.

1. Remove the driver's airbag (see INSTALLATION ), then remove the steering wheel (see STEERING WHEEL INSTALLATION ).
2. Disassemble the steering wheel (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
3. Remove the cruise control combination switch.

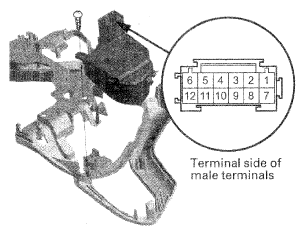

   Fig 1: Identifying Cruise Control Combination Switch Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals in each cruise control combination switch position according to the table.
   • If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the cruise control combination switch.

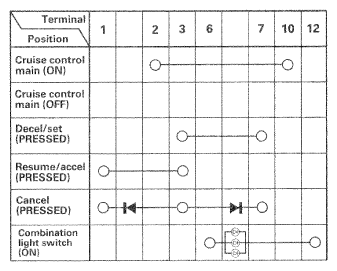

     Fig 2: Cruise Control Combination Switch Connector Terminals Continuity Chart

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install all remaining parts in the reverse order of removal.
