Detailed Information & Settings

This section allows you to run a specific diagnostic and allows additional setting choices for some screens that are not shown when selecting an icon from the System Links screen.

When you select the menu item Detail Information & Setting menu, the main diagnosis menu is displayed.

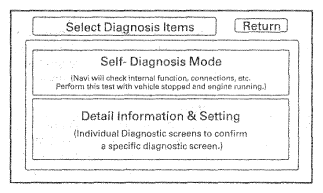

Fig 1: Screen Display - Select Diagnosis Items

Courtesy of AMERICAN HONDA MOTOR CO., INC.

After the display changes to the Diagnostic Menu, select the item you want to check, and the test begins. To return to the previous screen, select Return.

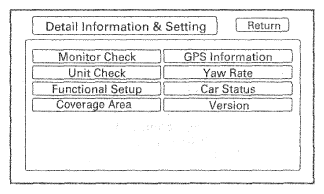

Fig 2: Screen Display - Detailed Information & Settings

Courtesy of AMERICAN HONDA MOTOR CO., INC.
