Monitor Check

Overview of navigation display.

The illumination input from the gauge brightness control with the headlights on provides back lighting for the buttons surrounding the screen.

These screens allow you to troubleshoot the navigation display. Select the item you want to troubleshoot, and follow the diagnostic instructions.

• RGB Color
• Gray Tone
• Black Raster
• Touch Panel Check 1
• Touch Panel Calibration
• Color Pattern
• White Raster
• Monitor Adjustment
• Touch Panel Check 2

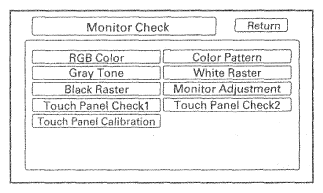

  Fig 1: Screen Display - Monitor Check

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
