Front Subframe Torque

NOTE:

After loosing the subframe mounting bolts, be sure to replace them with new ones.
After reinstalling the subframe, check and adjust the front wheel alignment (see WHEEL ALIGNMENT ).

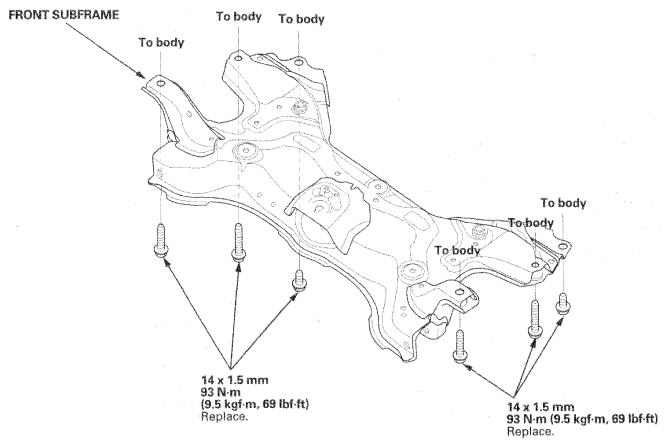

Fig 1: Front Subframe With Mounting Bolts And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
