With Navigation

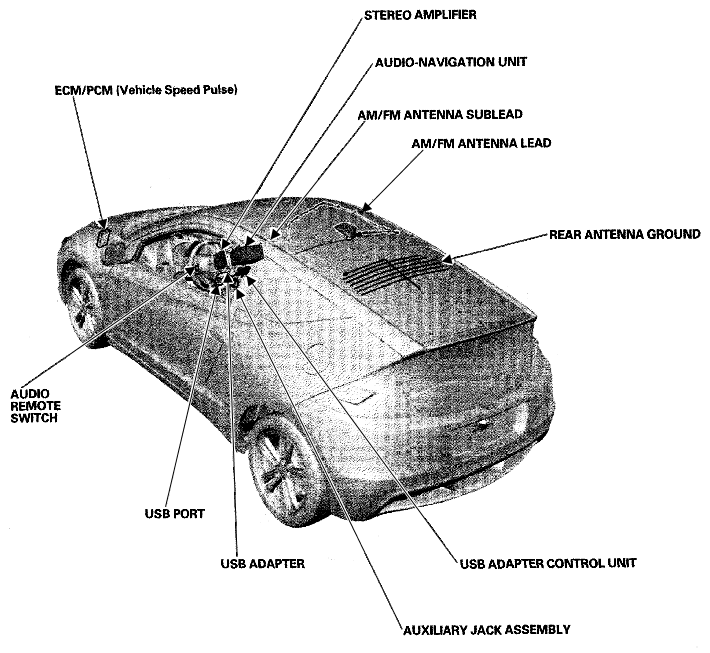

Fig 1: Identifying Audio System Component Location - With Navigation (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

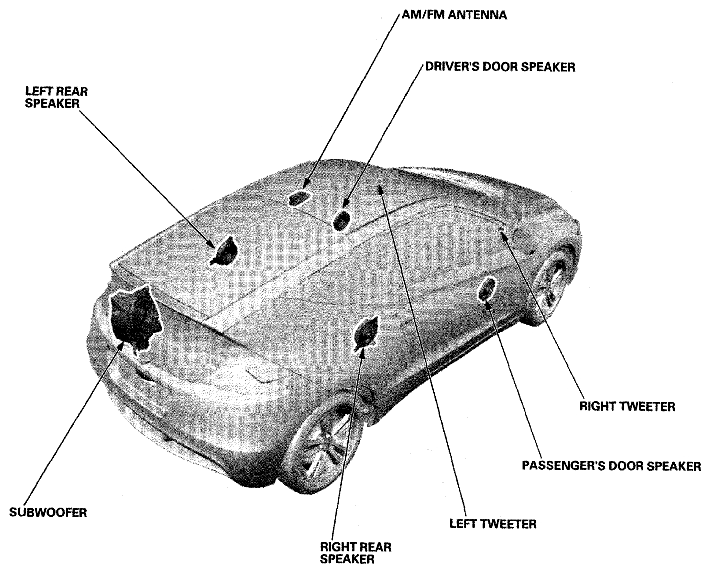

Fig 1: Audio System Components Location - With Navigation (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
