Window Grid Repair

NOTE: To make an effective repair, the broken section must be no longer than one inch.

Lightly rub the area around the broken section (A) with fine steel wool, then clean it with isopropyl alcohol.

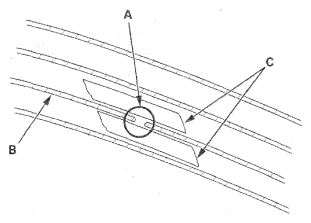

Fig 1: Identifying Broken Section And Window Antenna Wire With Cellophane Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully mask above and below the broken portion of the rear antenna ground (B) with cellophane tape (C).
Using a commercially available rear window defogger repair kit, apply a heavy coat of paint (A) extending about 1/8" on both sides of the break. Allow 30 minutes to dry.

Fig 2: Applying Heavy Coat Of Paint
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity in the repaired wire.
Apply a second coat of paint in the same way. Let it dry 3 hours before removing the tape.
