Home >> Honda >> 2012 >> CR-Z Base, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> HANDSFREELINK System >> Component Location Index >> With navigation
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

With navigation

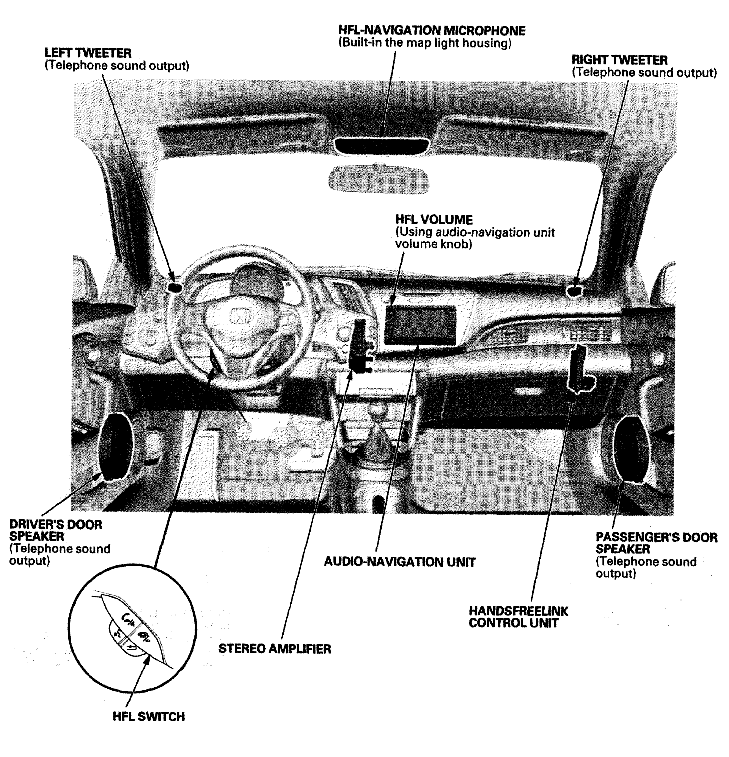

Fig 1: Identifying Handsfreelink System Component Location - With Navigation
G06952264Courtesy of AMERICAN HONDA MOTOR CO., INC.
