Power Mirror Switch Test/Replacement

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Remove the five screws and the cover (A).

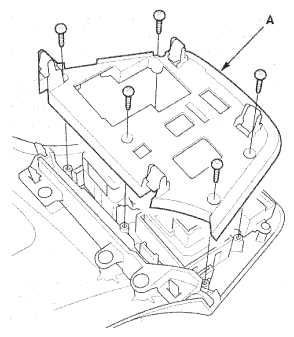

Fig 1: Identifying Power Mirror Switch Instrument Panel Covers And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mirror switch (A) from the instrument panel.

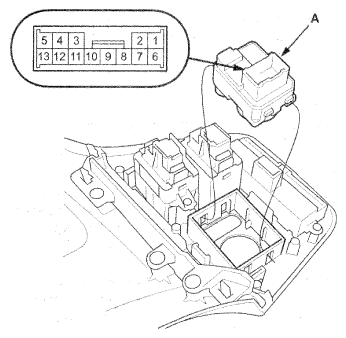

Fig 2: Identifying Mirror Switch Instrument Panel Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
Power Mirror Switch

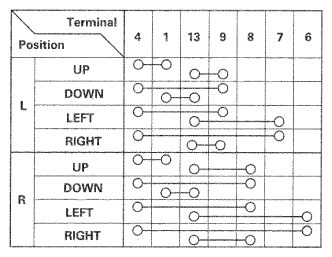

Fig 3: Identifying Power Mirror Switch Terminals Connector Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the parts in the reverse order of removal.
