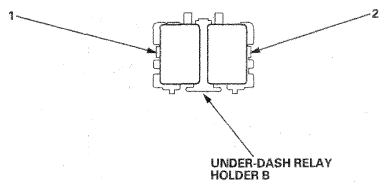

Under-Dash Relay Holder B
Courtesy of AMERICAN HONDA MOTOR CO., INC. UNDER-DASH RELAY HOLDER B REFERENCE TERMINALS
| Socket |
Ref |
Terminal |
Connects to |
| Driver's door unlock relay |
1 |
5 |
Dashboard wire harness |
| Hatch release actuator relay |
2 |
5 |
Dashboard wire harness |
