Paddle Shifter - (Downshift Switch) Circuit Troubleshooting

WARNING: This page is about a different variant/trim than selected.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repair or service.

  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
  2. Check for continuity between cable reel connector C (20P) terminals No. 3 and No. 19 when pressing and releasing the paddle shifter - (downshift switch).

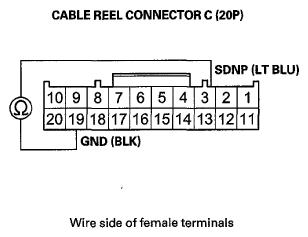

    Fig 1: Checking For Continuity Between Cable Reel Connector C (20P) Terminals No. 3 And No. 19 When Pressing And Releasing Paddle Shifter - (Downshift Switch)
    G06951149Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity when pressing the paddle shifter - (downshift switch) and no continuity when the paddle shifter - (downshift switch) is released?

    YES  -Go to step  5.

    NO  -Go to step  3.

  3. Disconnect the paddle shifter - (downshift switch) 4P connector.
  4. Check for continuity between paddle shifter - (downshift switch) 4P connector terminals No. 1 and No. 2 when pressing and releasing the paddle shifter - (downshift switch).

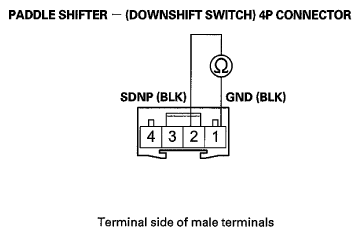

    Fig 2: Checking For Continuity Between Paddle Shifter - (Downshift Switch) 4P Connector Terminals No. 1 And No. 2
    G06951150Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity when pressing the paddle shifter - (downshift switch) and no continuity when the paddle shifter - (downshift switch) is released?

    YES  -Replace the cable reel subharness.

    NO  -Replace the paddle shifter - (downshift switch) (see PADDLE SHIFTER + (UPSHIFT SWITCH) OR PADDLE SHIFTER - (DOWNSHIFT SWITCH) REPLACEMENT  ).

  5. Remove the cable reel (see CABLE REEL REPLACEMENT ).
  6. Check for continuity between cable reel connector A (20P) terminal No. 9 and body ground.
    Fig 3: Checking For Continuity Between Cable Reel Connector A (20P) Terminal No. 9 And Body Ground
    G06951151Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step  7.

    NO  -Repair an open in the wire between cable reel connector A (20P) terminal No. 9 and body ground (G502), or repair poor body ground (G502).

  7. Turn the ignition switch to ON (II).
  8. Measure the voltage between cable reel connector A (20P) terminals No. 6 and No. 9.
    Fig 4: Measuring Voltage Between Cable Reel Connector A (20P) Terminals No. 6 And No. 9
    G06951152Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  -Replace the cable reel (see CABLE REEL REPLACEMENT ).

    NO  -Go to step  9.

  9. Turn the ignition switch to LOCK (0).
  10. Jump the SCS line with the HDS.
  11. Disconnect PCM connector A (44P).
  12. Check for continuity between PCM connector terminal A32 and body ground.
    Fig 5: Checking For Continuity Between Pcm Connector Terminal A32 And Body Ground
    G06951153Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short in the wire between PCM connector terminal A32 and the cable reel connector A (20P).

    NO  -Check for loose or poor connections at PCM connector terminal A32. If the connection is OK, substitute a known-good PCM (see SUBSTITUTING THE ECM/PCM ) and recheck.
