Component Location Index
WARNING:
This page is about a different variant/trim than selected.

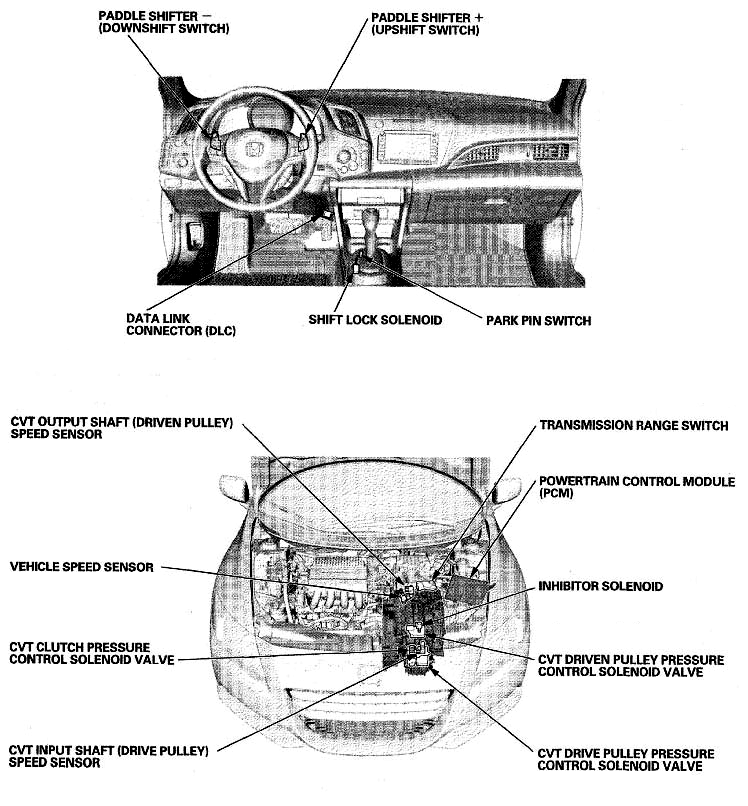

Fig 1: CVT Component Location Index (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: CVT Component Location Index (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
