Shift Lever Bracket Base Replacement

WARNING: This page is about a different variant/trim than selected.

Remove the shift lever assembly (see SHIFT LEVER REMOVAL ).
Remove the shift lever knob, the AT gear position indicator panel, the park pin switch harness/shift lock solenoid/A/T gear position indicator panel light assembly, the shift lock release, the shift lock release spring, and the shift lock stop/shift lock stop cushion from the shift lever assembly (see SHIFT LEVER DISASSEMBLY/REASSEMBLY ).
Replace the shift lever bracket base (A).
NOTE: The park pin switch (B) is built into the shift lever bracket base.

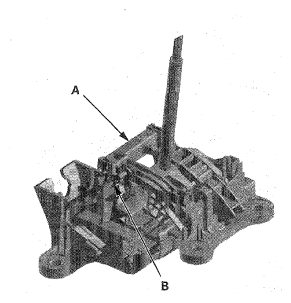

Fig 1: Locating Shift Lever Bracket Base And Park Pin Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the shift lock stop/shift lock stop cushion, the shift lock release spring, the shift lock release, the park pin switch harness/shift lock solenoid/AT gear position indicator panel light assembly, the AT gear position indicator panel, and the shift lever knob to the shift lever bracket base (see SHIFT LEVER DISASSEMBLY/REASSEMBLY ).
Install the shift lever assembly (see SHIFT LEVER INSTALLATION ).
