Forward Range; D Position

WARNING: This page is about a different variant/trim than selected.

Forward clutch: engage
Reverse brake: disengage
Start clutch: engage
Hydraulic pressure is applied to the forward clutch and the start clutch, and the sun gear drives the forward clutch.
The forward clutch drives the drive pulley shaft, which drives the driven pulley shaft linked by the steel belt.
The driven pulley shaft drives the secondary drive gear via the start clutch.
Power is transmitted to the secondary driven gear and the final drive gear, which in turn drives the final driven gear.

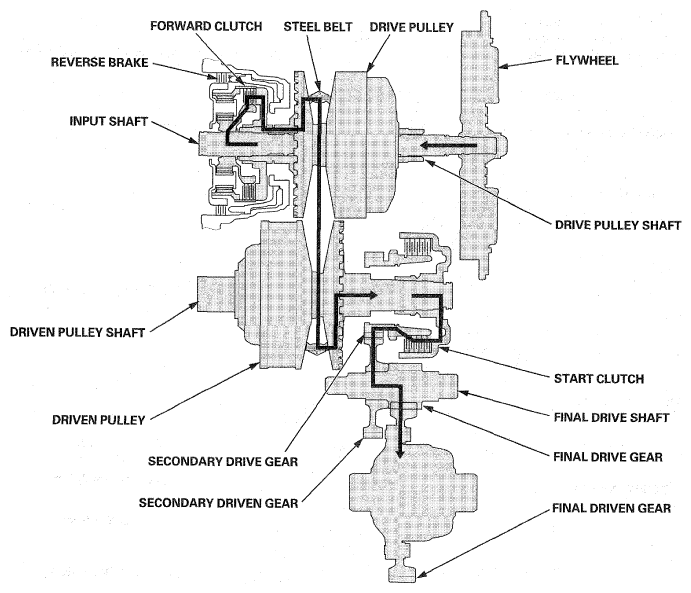

Fig 1: Forward Range D Position - Power Flow Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
