Cross-Member: Service and Repair

Middle Crossmember Gusset Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body or the related parts.

1. Remove the rear side trim panel Interior Trim Removal / Installation - Cargo Area.

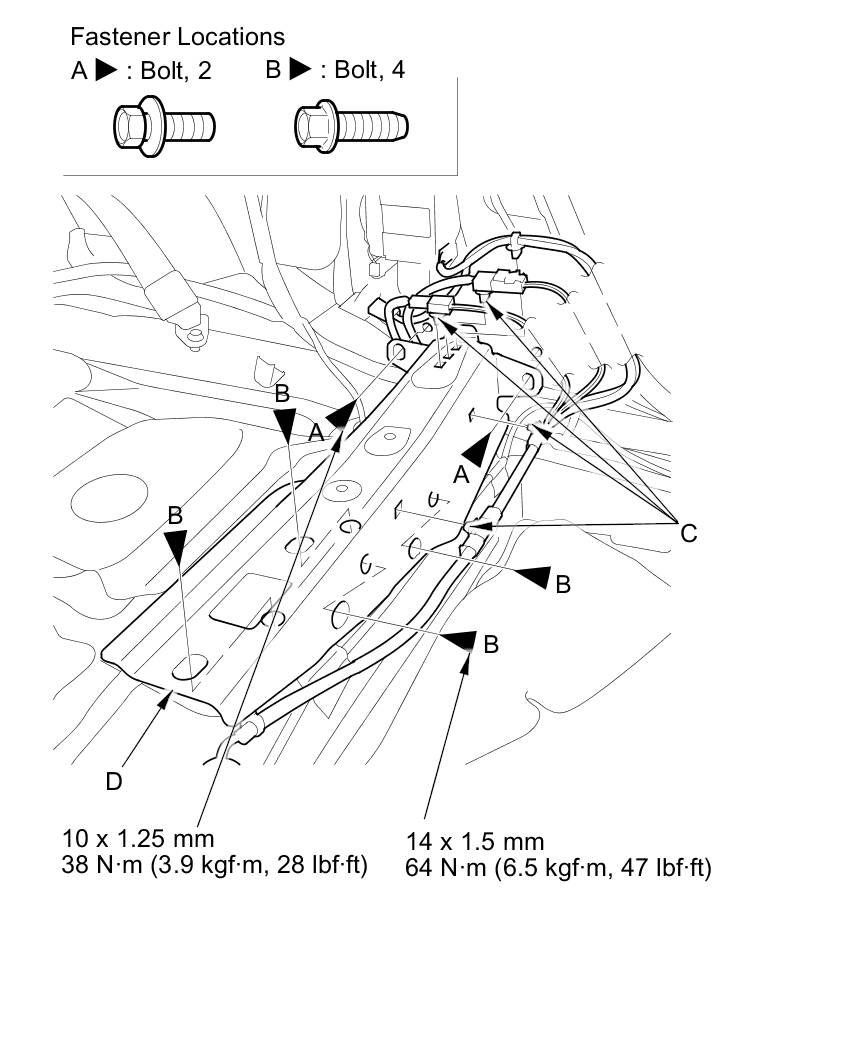

2. Remove the carpet as needed, remove the bolts (A, B) and detach the harness clips (C), then remove the middle crossmember gusset (D).






3. Install the gusset in the reverse order of removal and push the clips into place securely.
