Humidity Sensor: Service and Repair

Humidity/In-Car Temperature Sensor Replacement

1. Remove the instrument panel Instrument Panel Removal / Installation.

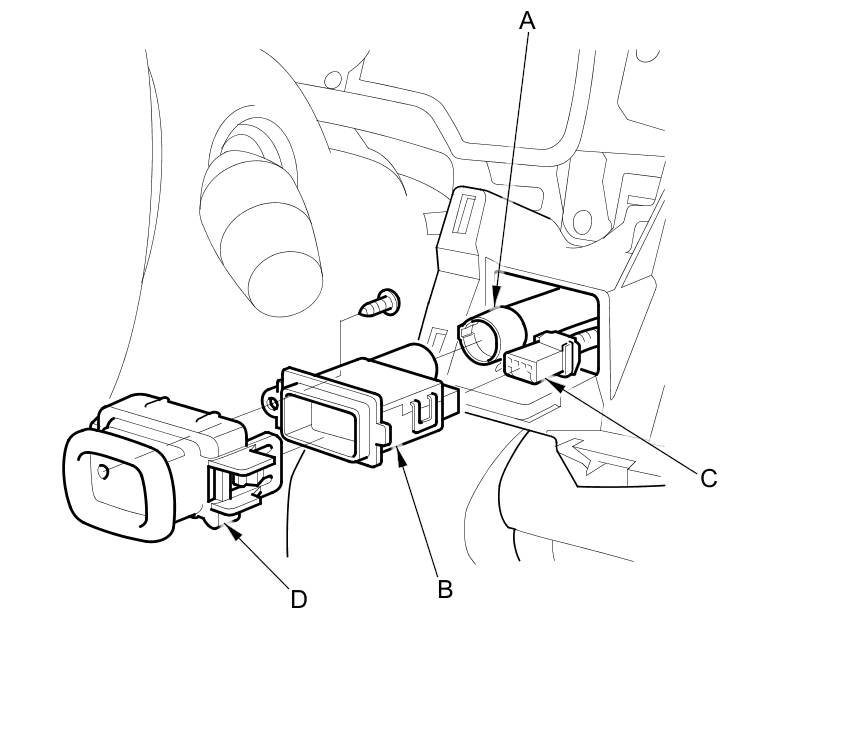

2. Remove the aspirator air hose (A) from the humidity/in-car temperature sensor (B), and disconnect the 4P connector (C).





3. Remove the self-tapping screw and humidity/in-car temperature sensor from the humidity/in-car temperature sensor trim (D).

4. Install the sensor in the reverse order of removal. Be sure to connect the aspirator air hose securely.
