Neutral Safety Switch: Service and Repair

Neutral Position Switch Replacement

1. Remove the air cleaner Service and Repair.

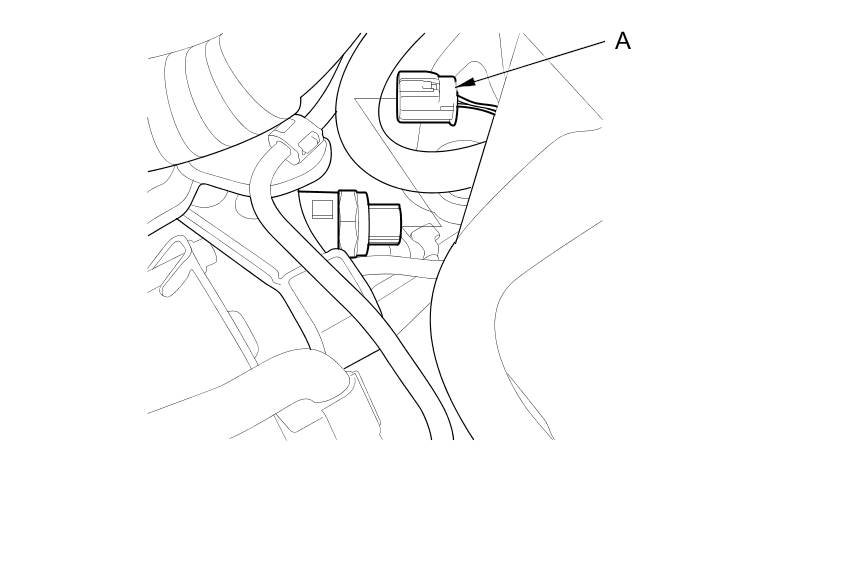

2. Disconnect the neutral position switch 2P connector (A).

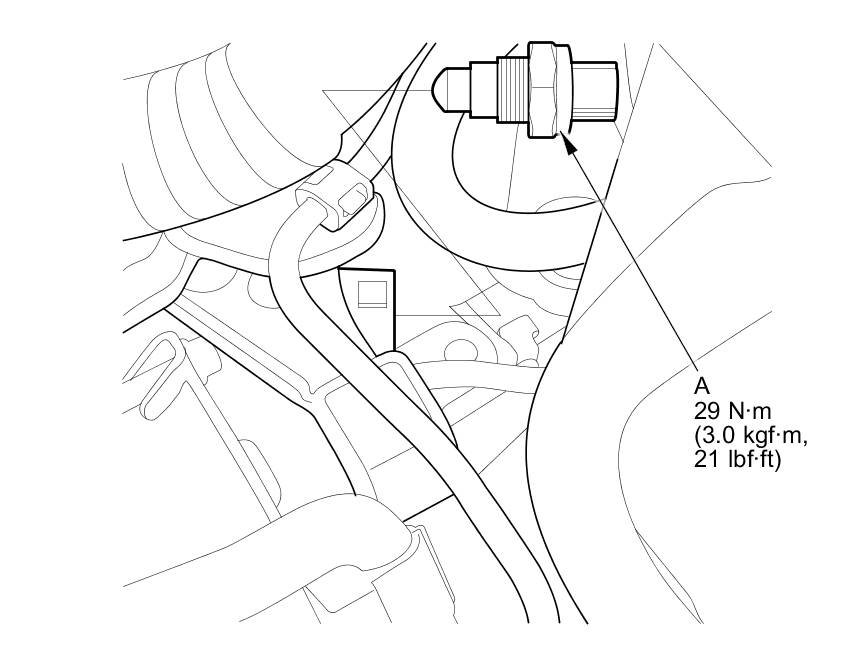

3. Remove the neutral position switch (A).





4. Apply liquid gasket (P/N 08718-0001, 08718-0003, or 08718-0004) evenly to the threads of the neutral position switch, and install it on the change lever assembly. Install the component within 5 minutes of applying the liquid gasket.

NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

5. Connect the neutral position switch 2P connector.

6. Install the air cleaner Service and Repair.
