Power Window Switch: Testing and Inspection

Passenger's Power Window Switch Test

1. Remove the passenger's power window switch Passenger's Power Window Switch Replacement.

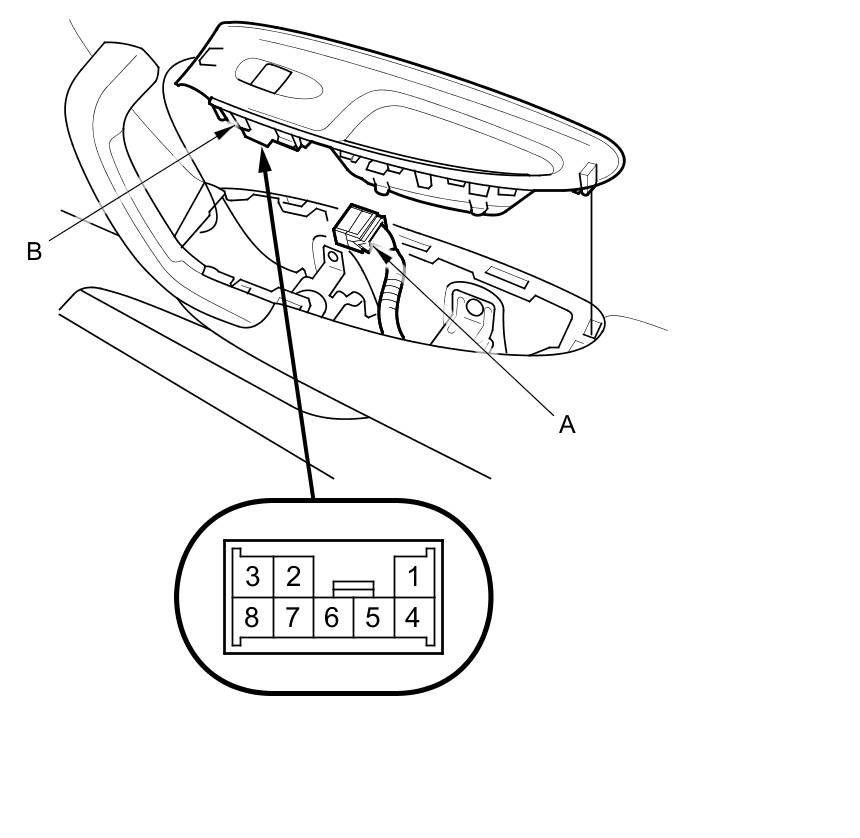

2. Disconnect the 8P connector (A) from the passenger's power window switch (B).

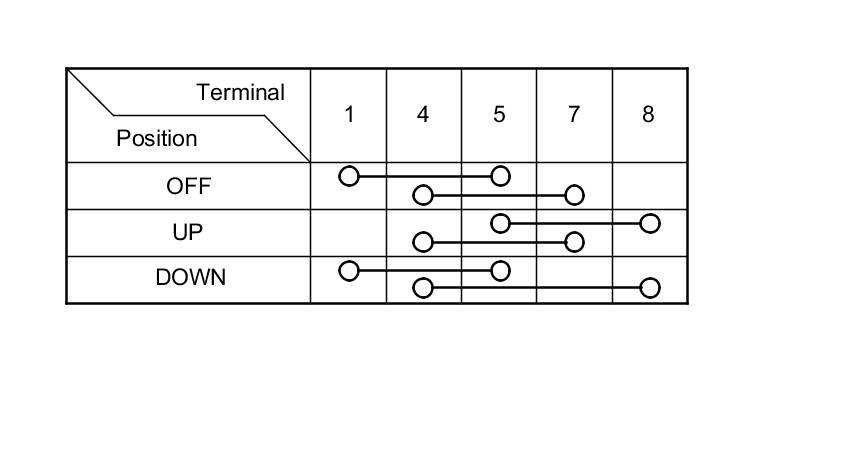

3. Check for continuity between the terminals in each position according to the table.





4. Connect battery power to terminal No. 8 and ground terminal No. 4 (or No. 5). The switch light should come on.

5. If the continuity is not as specified, replace the switch Passenger's Power Window Switch Replacement.
