Immobilizer System Component Location Index (2012 - 2013)
WARNING: This page is about a different variant/trim than selected.

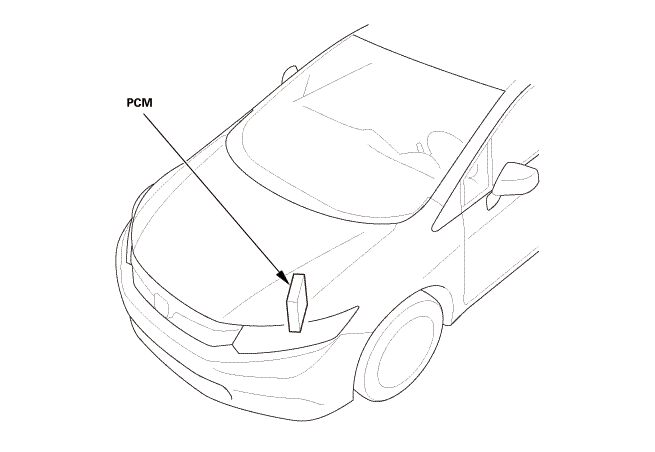

| PCM | Removal and Installation - Refer to: PCM Removal and Installation (Without Keyless Access System), or PCM Removal and Installation (With Keyless Access System) |
| Update - Refer to: PCM Update, or | |

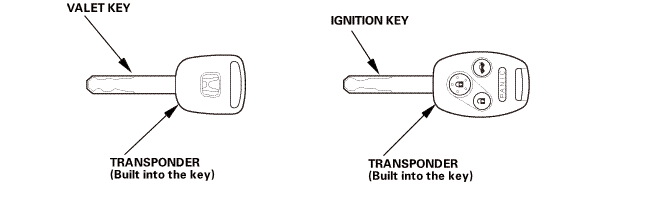

| IGNITION KEY | Registration |

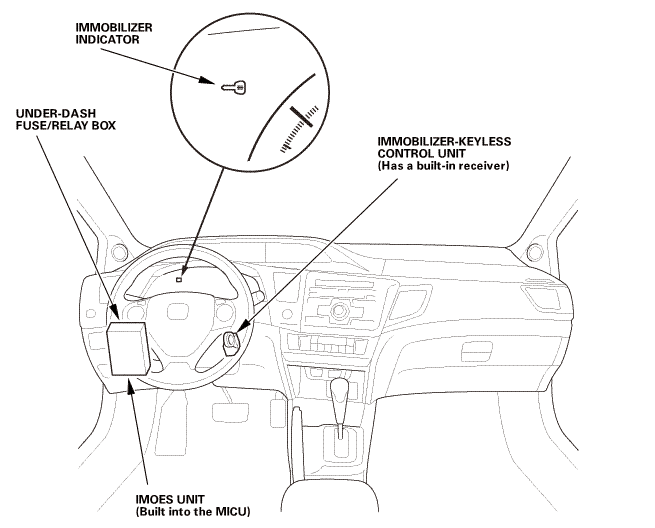

| IMMOBILIZER-KEYLESS CONTROL UNIT (Has a built-in receiver) | Input Test |
| Registration - Refer to: Immobilizer-Keyless Control Unit Registration | |
| Removal and Installation - Refer to: Immobilizer-Keyless Control Unit Removal and Installation, or | |
| IMOES UNIT (Built into the MICU) | Removal and Installation - Refer to: Under-Dash Fuse/Relay Box Removal and Installation (KA models with Keyless Access System), Or Under-Dash Fuse/Relay Box Removal and Installation (KA KX models without Keyless Access System) |
| VALET KEY | Registration |
