Immobilizer System Description - Overview without Keyless Access System) (2014 - 2015)

WARNING: This page is about a different variant/trim than selected.

The ignition key mechanically prevents strangers from starting a vehicle. The immobilizer system adds a second electronic layer of security to the vehicle. If the ignition key matches mechanically, but the electronic check does not match, the PCM suspends fuel delivery and shuts down the engine.

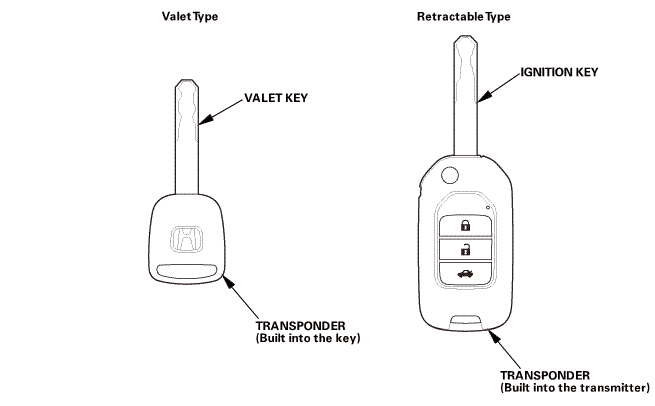

GHH119320Courtesy of HONDA, U.S.A., INC.

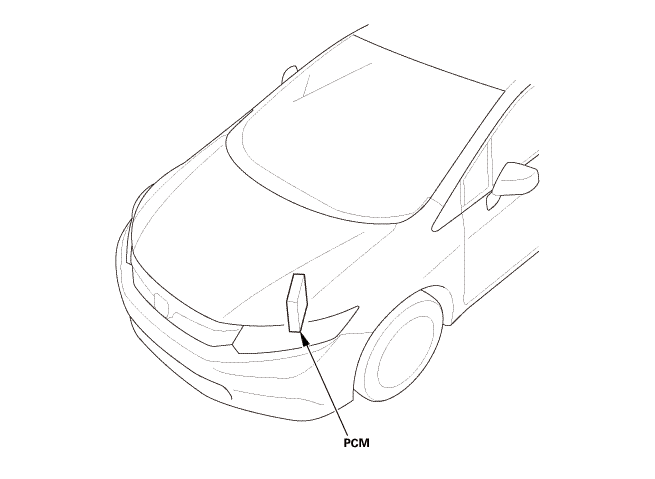

GHH119321Courtesy of HONDA, U.S.A., INC.

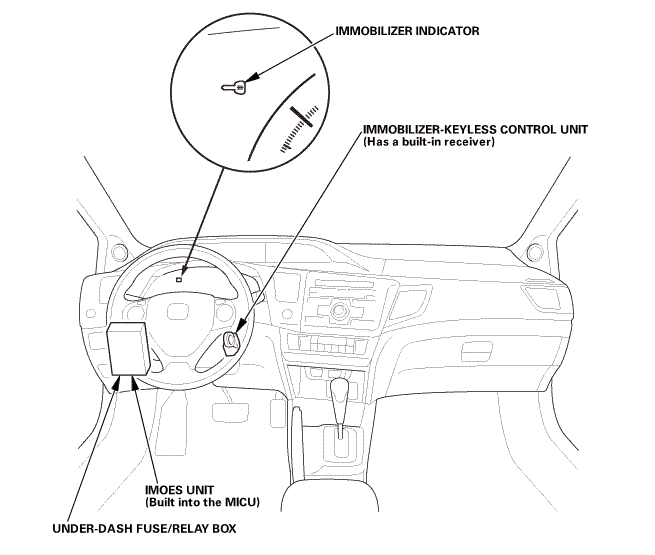

GHH119322Courtesy of HONDA, U.S.A., INC.
