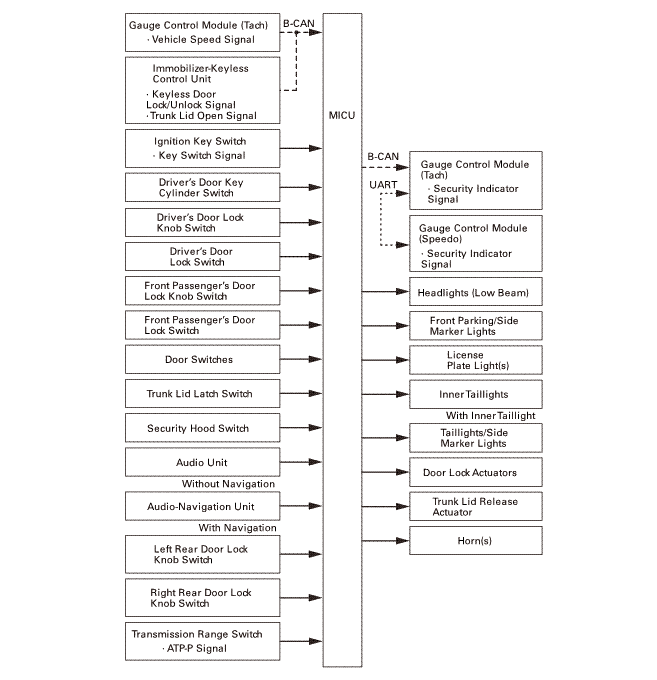

Keyless/Power Door Locks/Security System Description - System Diagram (2012 - 2013)

WARNING: This page is about a different variant/trim than selected.
GHH119368Courtesy of HONDA, U.S.A., INC.
