Door Key Cylinder Switch Test: Removal
WARNING: This page is about a different variant/trim than selected.
1. Front Door Power Window Switch Panel
 Courtesy of HONDA, U.S.A., INC.
|

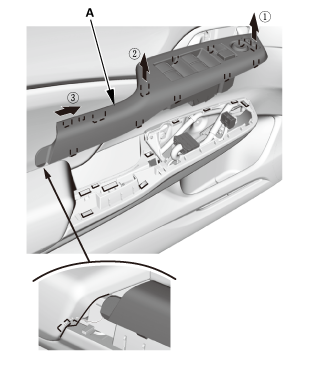

1. Remove the power window switch panel (A). |
2. Front Door Panel - Driver's Side
 Courtesy of HONDA, U.S.A., INC.
|

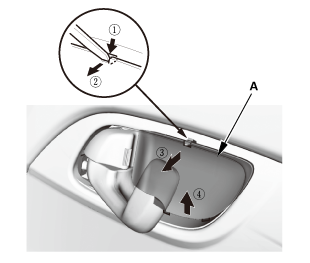

1. Remove the inner handle cap (A). |
 Courtesy of HONDA, U.S.A., INC.
|

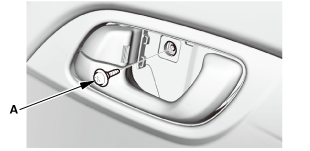

2. Remove the screw (A). |
 Courtesy of HONDA, U.S.A., INC.
|

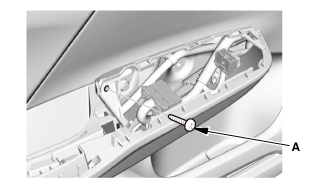

3. Remove the screw (A). |
 Courtesy of HONDA, U.S.A., INC.
|

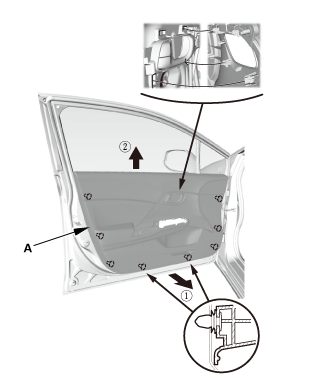

4. Remove the door panel (A). |
