Driver's Door Lock Switch Test (2012 - 2013): Test

WARNING: This page is about a different variant/trim than selected.
  1. Driver's Door Lock Switch - Test
    GHH130764GHH130765Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH130764GHH130765Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

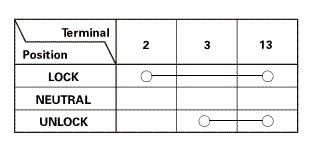

    		 1. Check for continuity between the terminals in each switch position according to table

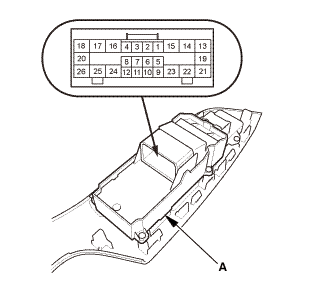

    2. If the continuity is not as specified, the driver's door lock switch is faulty; replace the power window master switch (A).
