Front Passenger's Door Lock Switch Test: Test

WARNING: This page is about a different variant/trim than selected.

1. Front Passenger's Door Lock Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

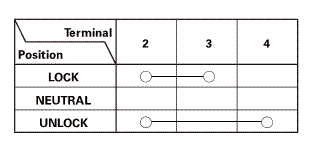

1. Check for continuity between the terminals in each switch according to table

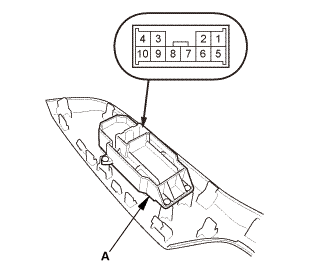

2. If the continuity is not as specified, the front passenger's door lock switch is faulty; replace the power window switch (A).
