Interior LF Antenna Test (2014 - 2015)
WARNING: This page is about a different variant/trim than selected.
| NOTE:

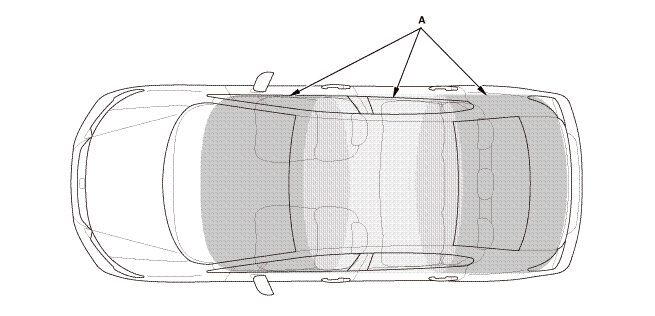

Before testing, check for DTCs. If any DTCs are indicated, troubleshoot the indicated DTCs first. 1. Connect the HDS to the data link connector (DLC) - Refer to: DLC Circuit Troubleshooting (2014 - 2015) . 2. Press the engine start/stop button to select the ON mode. 3. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS. 4. Select the SELF CHECK and if any malfunction is found, troubleshoot it first. 5. Select the FUNCTIONAL TESTS, and do the antenna driving test by checking the transmitting areas (A) between the LF antenna and the keyless remote (except on the dashboard, in the glove box, door pockets, console box, and other enclosed areas). |
| LF Antenna Location | HDS Indication (Function Test) |
|---|---|
| Front interior LF antenna | Cabin Front Antenna Driving |
| Middle interior LF antenna | Cabin Middle Antenna Driving |
| Rear interior LF antenna | Cabin Rear Antenna Driving |
NOTE: Function Test cannot operate at the same time, check the LF antennas one at a time.
