Rear Door Lock Actuator Test: Test

WARNING: This page is about a different variant/trim than selected.

Rear Door Lock Actuator - Test

GHH130812GHH130813Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
GHH130812GHH130813Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

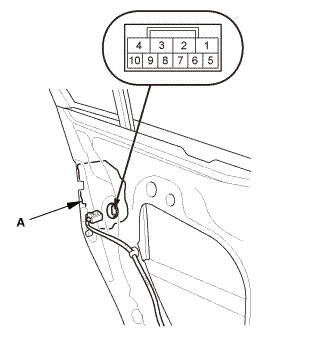

 1. Disconnect the connector

2. Check the actuator operation by connecting power and ground according to the table.

NOTE:  To prevent damage to the actuator, apply battery voltage only momentarily

3. If the actuator does not operate as specified, the rear door lock actuator is faulty; replace the rear door latch (A)

4. Connect the connector.
