Rear Door Lock Knob Switch Test: Test
WARNING: This page is about a different variant/trim than selected.
1. Rear Door Lock Knob Switch - Test
  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
|

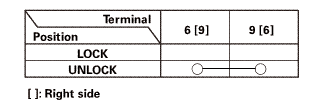

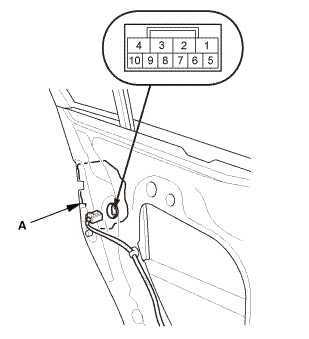

1. Disconnect the connector 2. Check for continuity between the terminals in each switch position according to the table
3. If the continuity is not as specified, the door lock knob switch is faulty; replace the rear door latch (A)
4. Connect the connector.
|
